6200 6201 6202 6203 6204 6205 Z1V1 Z2V2 Z3V3 high precision ceiling fan motor deep groove ball bearing
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
Product NameDEEP GROOVE BALL BEARINGMaterialChrome Steel, Carbon steel, ...
- Overview
- Related Products
1. Grade: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
Product Name | DEEP GROOVE BALL BEARING |
Material | Chrome Steel, Carbon steel, Stainless steel |
Series | Series 6000, 6200, 6300, 6400, 6900,6800, etc |
Clearance | C2, C0, C3, C4, C5 |
Precision grade | P0, P6, P5, P4, P2 or ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9 |
Reference Standard | DIN620 (Germany), ANSI (America), ISO, INA, NTN, NSK, etc |
Delivery Date | Normally ready goods and stock within 7 days |
Used | Electric machine, motocycle, ATM, fan, conveyor, cement mixer etc |
Following is the standard data. If you need more higher requirements, pls inquiry us. We can customize for you
Item | 6200 open ZZ 2RS |
Size | ID10 x OD30 x W9mm, 0.031kg |
Radius (minr) | 0.6mm/0.024 inch |
Basic load Rating KN | Dynamic 5.1 C Static 2.38 C。 |
Ball complement | NO 8 Size 4.763mm |
Max Runout Speed | 24000 r/min with grease 29000 r/min with oil |
Item | 6201 open ZZ 2RS |
Size | ID12 x OD32 x W10mm, 0.0351kg |
Radius (minr) | 0.6mm/0.024 inch |
Basic load Rating KN | Dynamic 6.82 C Static 3.05 C。 |
Ball complement | NO 7 Size 5.953mm |
Max Runout Speed | 22000r/min with grease 27000 r/min with oil |
Item | 6202 open ZZ 2RS |
Size | ID15 x OD35 x W11mm,0.0443kg |
Radius (minr) | 0.6mm/0.024 inch |
Basic load Rating KN | Dynamic 7.65 C Static 3.72 C。 |
Ball complement | NO 8 Size 5.953mm |
Max Runout Speed | 20000r/min with grease 24000 r/min with oil |
Item | 6203 open ZZ 2RS |
Size | ID17 x OD40 x W12mm, 0.063kg |
Radius (minr) | 0.6mm/0.024 inch |
Basic load Rating KN | Dynamic 9.58 C Static 4.78 C。 |
Ball complement | NO 8 Size 6.747mm |
Max Runout Speed | 17000r/min with grease 21000 r/min with oil |
Item | 6204 open ZZ 2RS |
Size | ID20 x OD47 x W14mm, 0.1009kg |
Radius (minr) | 1.0mm/0.039 inch |
Basic load Rating KN | Dynamic 12.8 C Static 6.65 C。 |
Ball complement | NO 8 Size 7.938mm |
Max Runout Speed | 15000r/min with grease 17000 r/min with oil |
Item | 6205 open ZZ 2RS |
Size | ID25x OD52 x W15mm, 0.1245kg |
Radius (minr) | 1.0mm/0.039 inch |
Basic load Rating KN | Dynamic 14.0 C Static 7.88 C。 |
Ball complement | NO 9 Size 7.938mm |
Max Runout Speed | 13000r/min with grease 15000 r/min with oil |

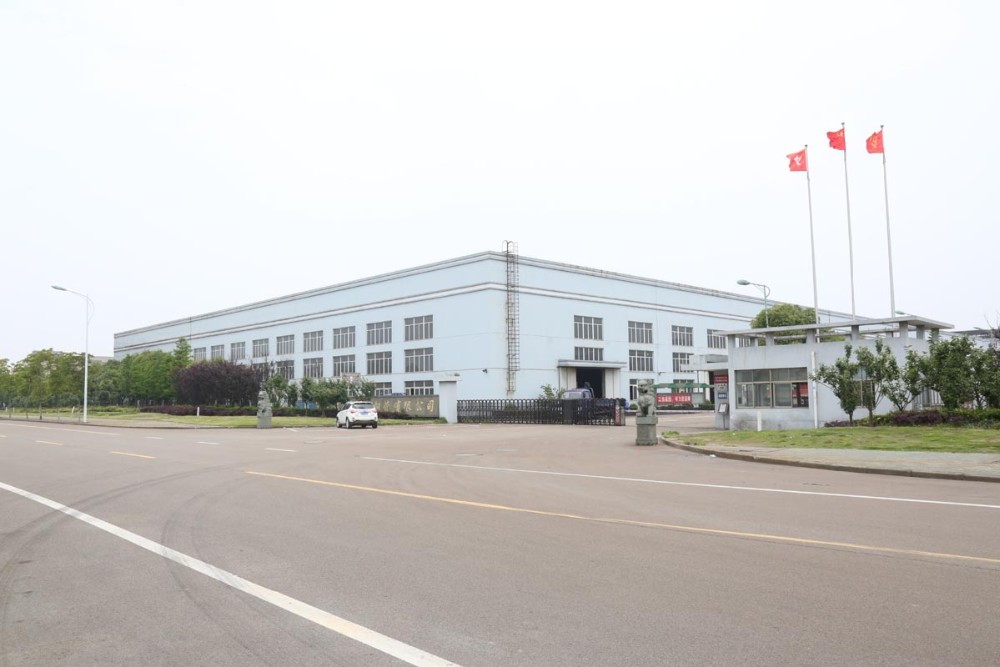

Factory---one-stop productions

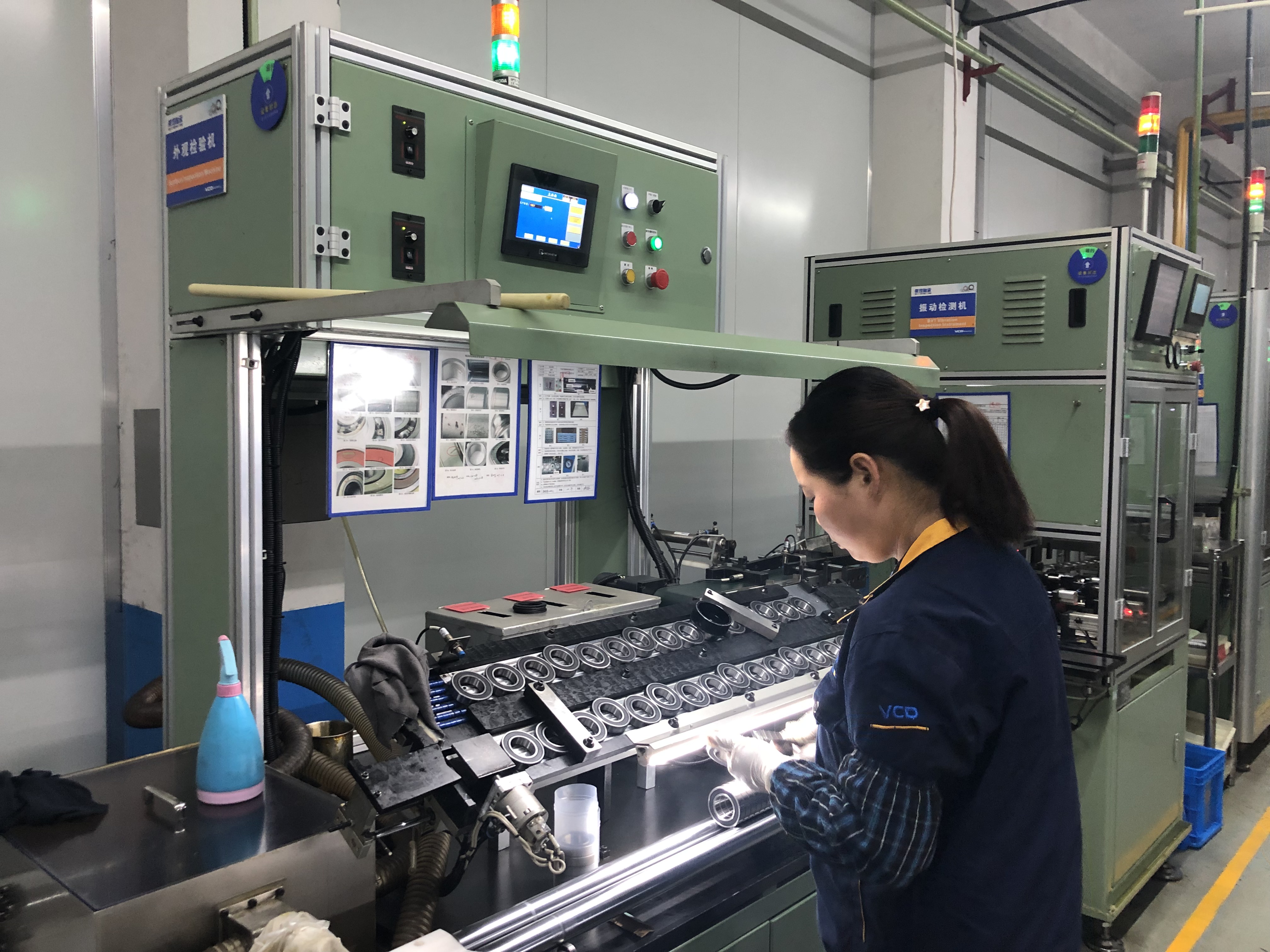

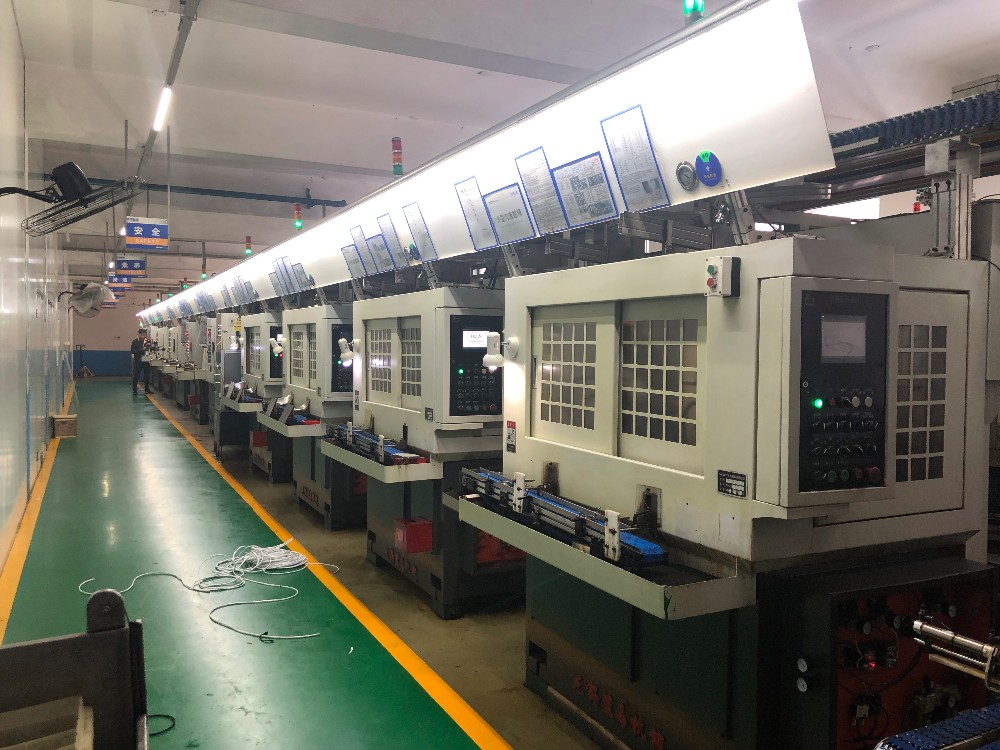

Workshop

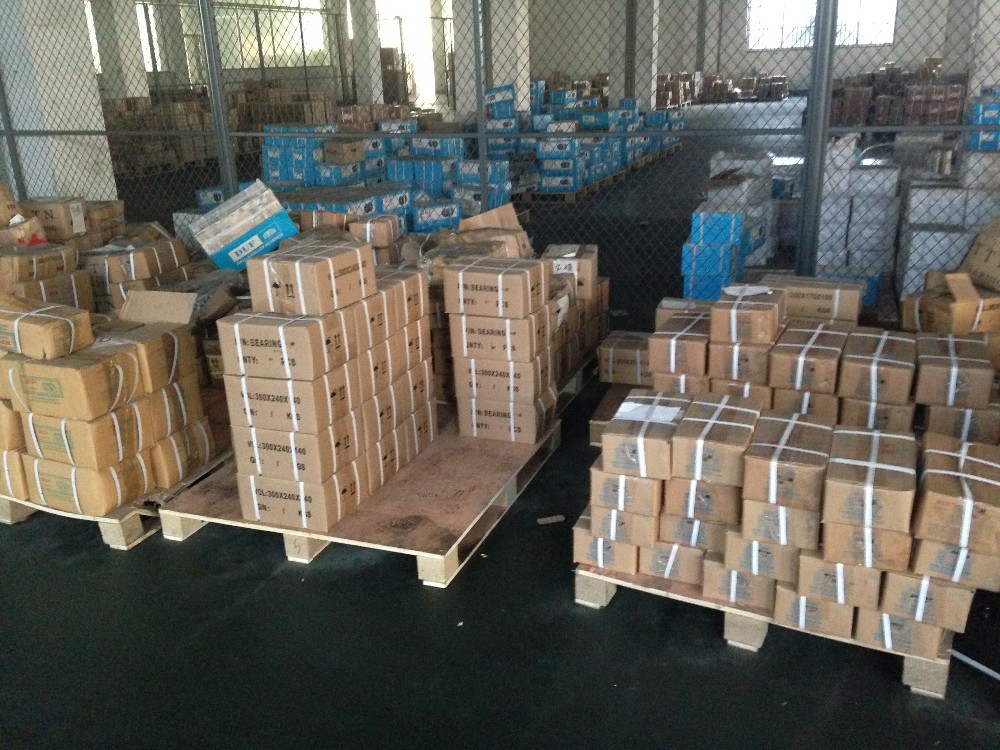

Warehouse

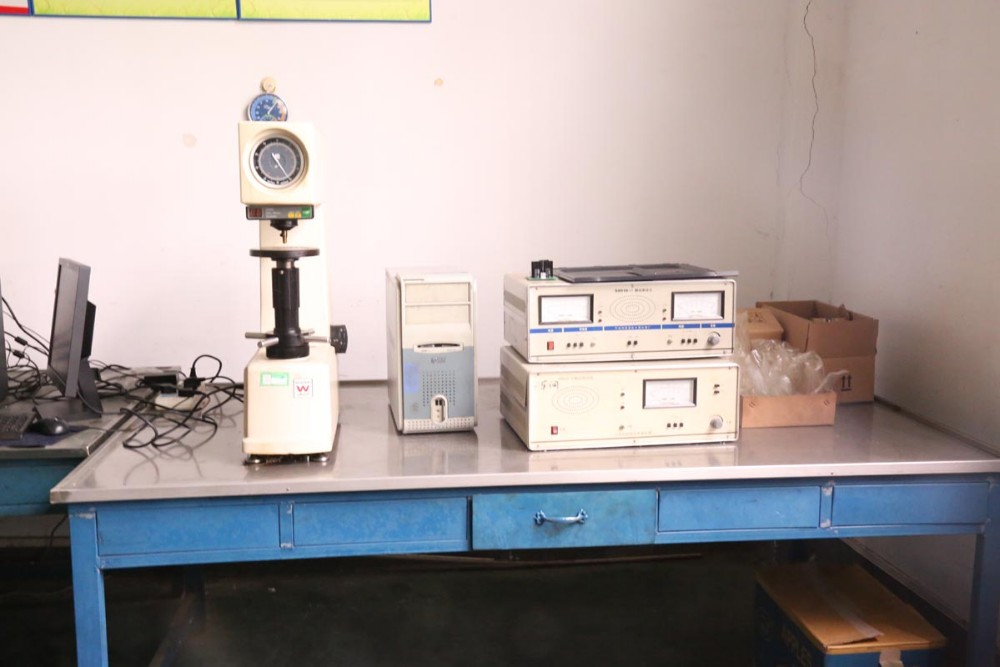

Inspection Dept
Customized colorful box

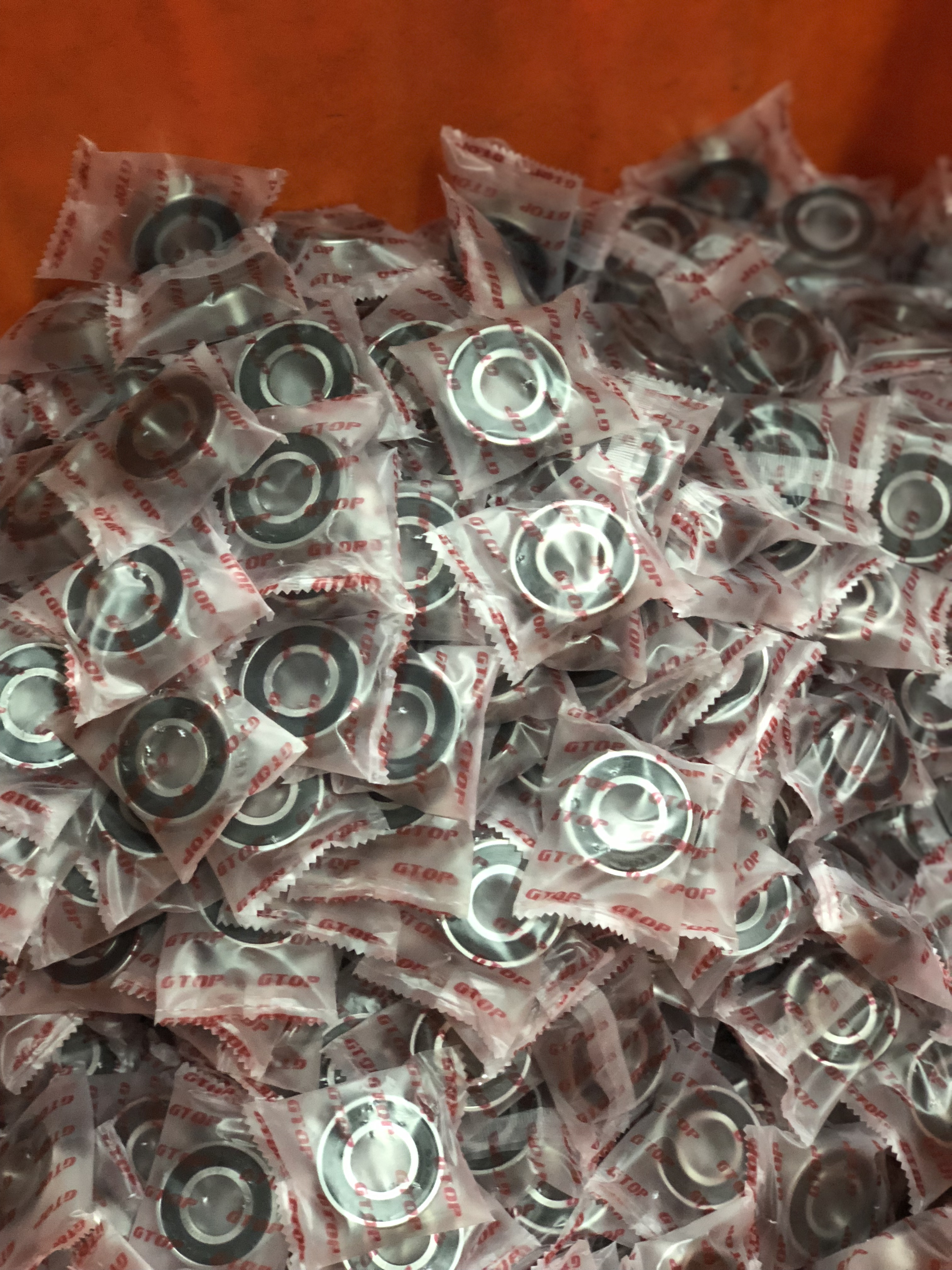

Independent small package

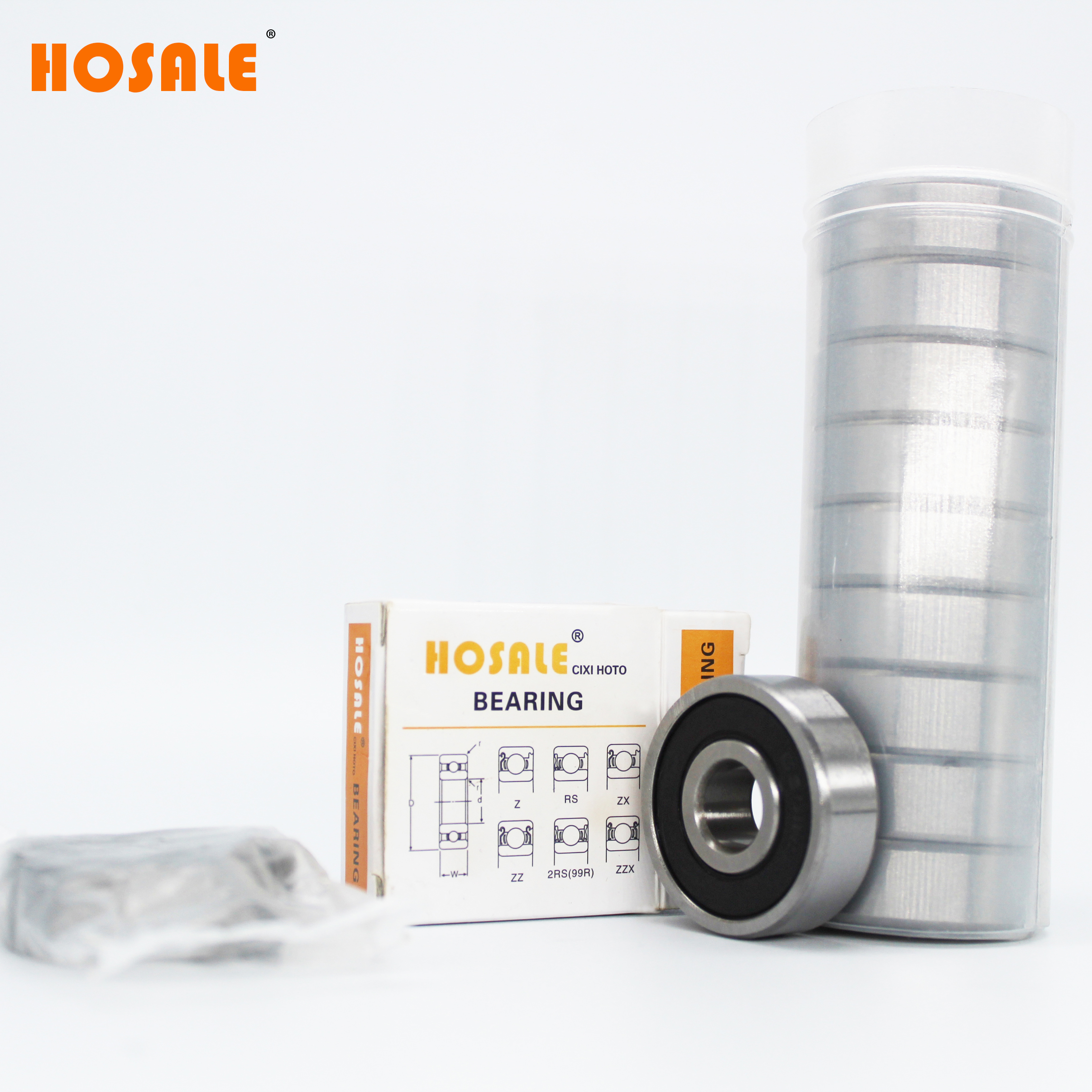

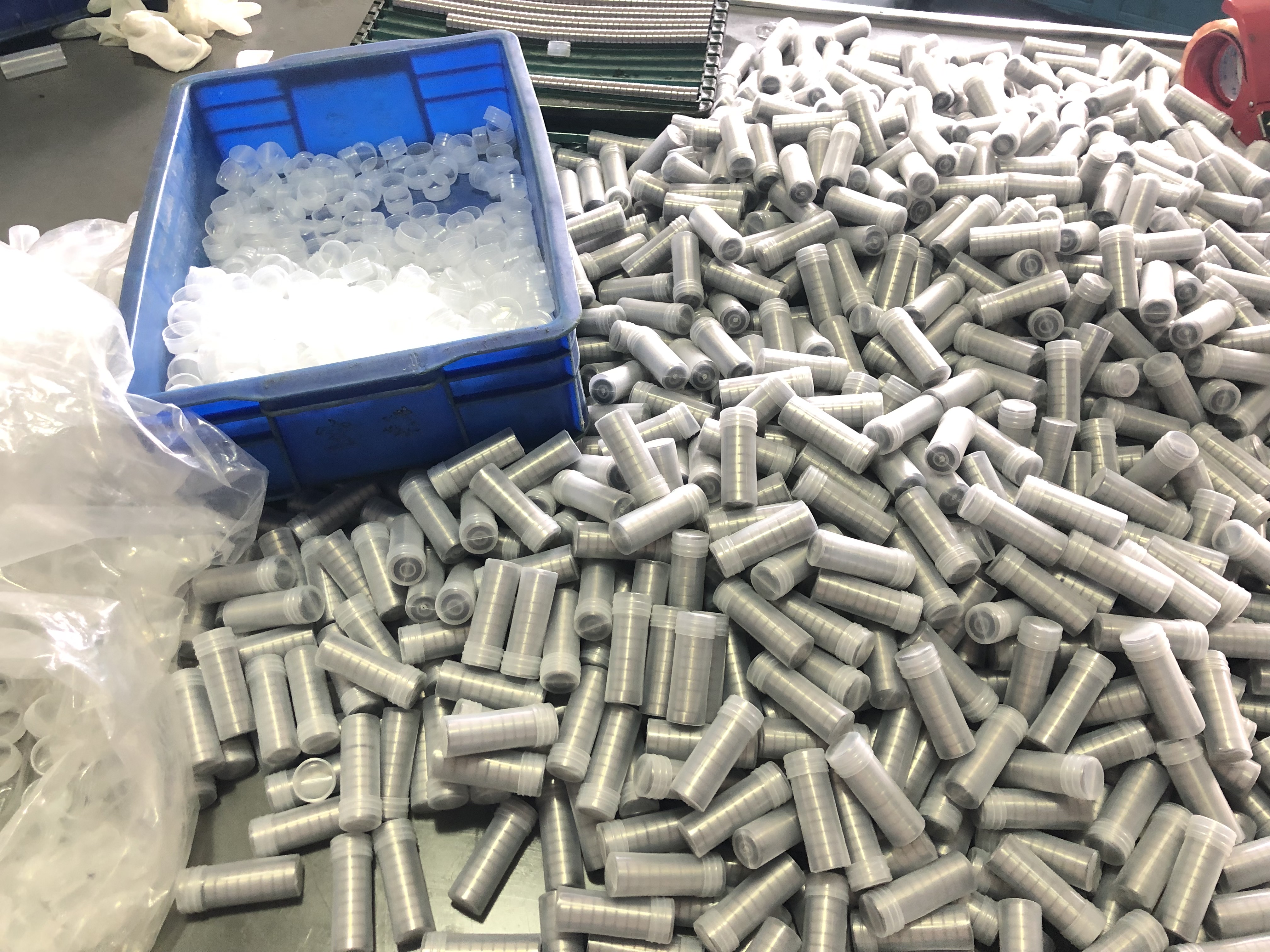

Tube packaging

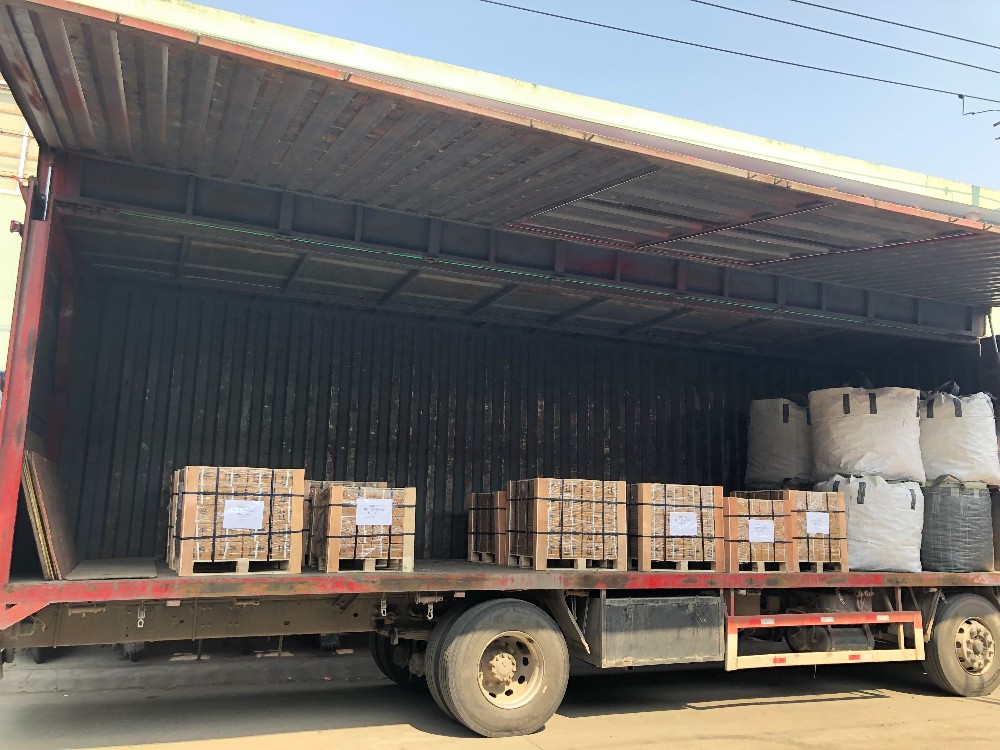

Delivery

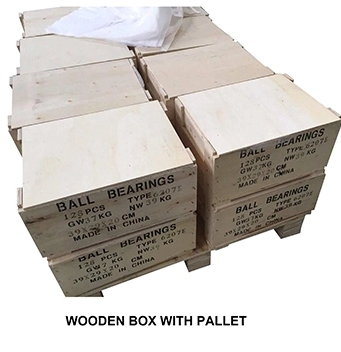

Wooden case

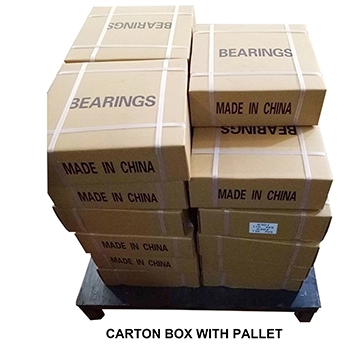

Cartons
Q: Are you trading company or manufacturer
A: We are factory. We support video see factory in this serious condition
Q: How long is your delivery time
A: Generally it is 1~3 days if the goods are in stock, or it is 7-20 days if the goods are not in stock, it is according to quantity
Q: Do you provide samples is it free or extra
A: Yes, we could offer the sample for free charge but do not pay the cost of freight
Q: What is your terms of payment
A: Payment<=1000usd, 100="">=1000USD, 30% T/T in advance, balance before shippment. If you have another question, pls feel free to contact us as below
CIXIHOTO
CIXIHOTO introduces the ultimate solution for your ceiling fan motor with the 6200 6201 6202 6203 6204 6205 Z1V1 Z2V2 Z3V3 high precision deep groove ball bearing series. Designed to give you the highest level of performance guaranteeing a smooth and quiet operation for your ceiling fan
Possess the latest advancements in ball bearing technology providing full contact with the balls and raceways made of premium quality chrome steel. CIXIHOTO this means that our bearing is perfectly aligned with your motor's requirements and can withstand high speeds and high radial and axial loads
Pre-lubricated with high-quality grease and sealed to protect the bearing from dirt dust and other potential contaminants ensures a longer bearing life and significantly reduces maintenance costs. Moreover a Z1V1 Z2V2 and Z3V3 accuracy rating means unparalleled precision and low noise level for smoother rotation
Specially designed for the ceiling fan motor industry but can also be suitable for other applications such as miniature motors power tools electric pumps and more. Easy to install and can replace the existing bearings in your ceiling fan motor upgrading its performance
As the leading bearing manufacturer CIXIHOTO provides its customers with quality products backed by excellent customer service. Our team of experts is always available to guide you through every step of the selection and installation process
