Chrome steel ABEC-1 Z2 623 624 625 626 627 628 629 ZZ Miniature bearings for fishing gear electronic equipment
Investing in a dependable and bearing durable the fishing gear or gear this is electronic? Look no further than Chrome steel ABEC-1 Z2 623 624 625 626 627 628 629 ZZ Miniature bearings for fishing gear electronic equipment.
&nb...
- Overview
- Related Products
CIXIHOTO
Investing in a dependable and bearing durable the fishing gear or gear this is electronic? Look no further than Chrome steel ABEC-1 Z2 623 624 625 626 627 628 629 ZZ Miniature bearings for fishing gear electronic equipment.
These bearings are produced from top-notch chrome steel this is resistant to corrosion and then make utilization of ensuring a lifespan it is very long your gear. The rating this is ABEC-1 why these bearings are from the product quality this is highest by having a threshold optimum of 0.0003 ins.
The Z2 rating means these bearings are designed for moderate price and load applications making them suitable for small fishing reels electronic machines or simply just about any gear this might be comparable. The CIXIHOTO 623 624 625 626 627 628 and 629 sizes can be found promoting a variety this is wide of to select from to match your demands specific.
Additionally, these bearings are made to be ZZ shielded this suggests them perfect for found in outside or environments being dirty are protected from debris and dust making. This lets you make sure that your gear shall remain from any away debris it is unwanted may cause issues for the bearings
1. Grade: ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9
2. OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
|
Product Name
|
DEEP GROOVE BALL BEARING
|
|
Material
|
Chrome Steel, Carbon steel, Stainless steel
|
|
Series
|
Series 6000, 6200, 6300, 6400, 6900, 6800, etc
|
|
Clearance
|
C2, C0, C3, C4, C5
|
|
Precision grade
|
P0, P6, P5, P4, P2 or ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9
|
|
Reference Standard
|
DIN620(Germany), ANSI(America), ISO, INA, NTN, NSK, etc
|
|
Delivery Date
|
Normally ready goods and stock within 7 days
|
|
Used
|
Electric machine, motocycle, ATM, fan, conveyor, cement mixer etc
|
|
Item
|
623 open ZZ 2RS
|
|
Size
|
ID3 x OD10 x W4mm, 0.002kg
|
|
Radius (min. r)
|
0.2mm/0.007 inch
|
|
Basic load Rating KN
|
Dynamic 0.64 C
Static 0.23 C。
|
|
Ball complement
|
NO 6
Size 2.381mm
|
|
Max Runout Speed
|
52000 r/min with grease
63000 r/min with oil
|
|
Item
|

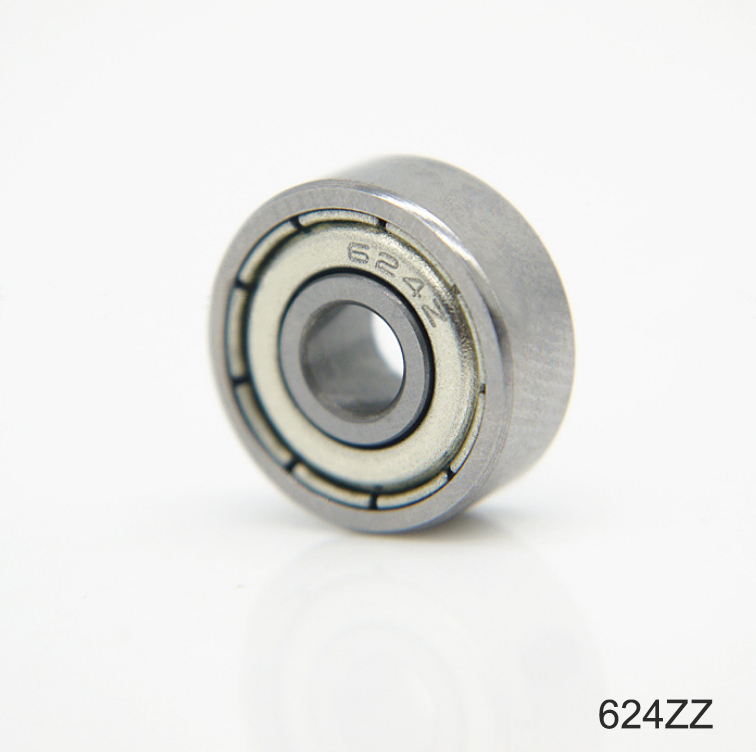

624 open ZZ 2RS
|
|
Size
|
ID4 x OD13 x W5mm, 0.0032kg
|
|
Radius (min. r)
|
0.2mm/0.007 inch
|
|
Basic load Rating KN
|
Dynamic 1.15 C
Static 0.4 C。
|
|
Ball complement
|
NO 7
Size 2.381mm
|
|
Max Runout Speed
|
36000r/min with grease
45000 r/min with oil
|
|
Item
|
625 open ZZ 2RS
|
|
Size
|
ID5 x OD16 x W5mm, 0.0048kg
|
|
Radius (min. r)
|
0.3mm/0.012 inch
|
|
Basic load Rating KN
|
Dynamic 1.88 C
Static 0.68 C。
|
|
Ball complement
|
NO 6
Size 3.175mm
|
|
Max Runout Speed
|
32000r/min with grease
40000 r/min with oil
|
|
Item
|

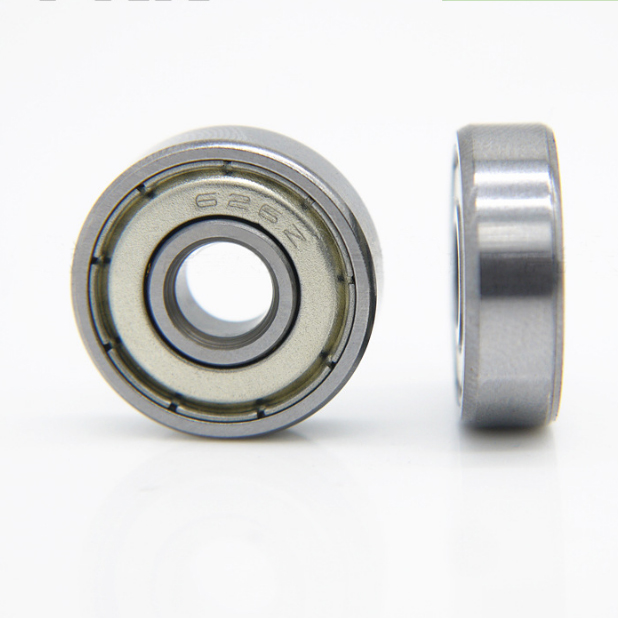

626 open ZZ 2RS
|
|
Size
|
ID6 x OD19 x W6mm, 0.0081kg
|
|
Radius (min. r)
|
0.3mm/0.012 inch
|
|
Basic load Rating KN
|
Dynamic 2.8 C
Static 1.05 C。
|
|
Ball complement
|
NO 7
Size 3.175mm
|
|
Max Runout Speed
|
28000r/min with grease
36000 r/min with oil
|
|
Item
|
627 open ZZ 2RS
|
|
Size
|
ID7 x OD22 x W7mm, 0.013kg
|
|
Radius (min. r)
|
0.3mm/0.012 inch
|
|
Basic load Rating KN
|
Dynamic 3.28 C
Static 1.35 C。
|
|
Ball complement
|
NO 7
Size 3.969mm
|
|
Max Runout Speed
|
26000r/min with grease
34000 r/min with oil
|
|
Item
|
628 open ZZ 2RS
|
|
Size
|
ID8x OD24 x W8mm, 0.017kg
|
|
Radius (min. r)
|
0.3mm/0.012 inch
|
|
Basic load Rating KN
|
Dynamic 3.35 C
5CStatic 1.40 C。
|
|
Ball complement
|
NO 7
Size 3.969mm
|
|
Max Runout Speed
|
24000r/min with grease
32000 r/min with oil
|
|
Item
|
629 open ZZ 2RS
|
|
Size
|
ID9x OD26 x W8mm, 0.02kg
|
|
Radius (min. r)
|
0.3mm/0.012 inch
|
|
Basic load Rating KN
|
Dynamic 4.45 C
5CStatic 1.95 C。
|
|
Ball complement
|
NO 7
Size 4.763mm
|
|
Max Runout Speed
|
22000r/min with grease
30000 r/min with oil
|
Factory---one-stop productions
Workshop
Warehouse
Inspection Dept
Customized colorful box
Independent small package
Tube packaging
Delivery
Wooden case
Cartons
Q: Are you trading company or manufacturer?
A: We are factory. We support video see factory in this serious condition.
Q: How long is your delivery time?
A: Generally it is 1~3 days if the goods are in stock. or it is 7-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000usd, 100="">=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us as below:
