Our silicon nitride ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged. Si3N4 ceramic bearings are generally used in specialist applications for their high temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes are available on request."

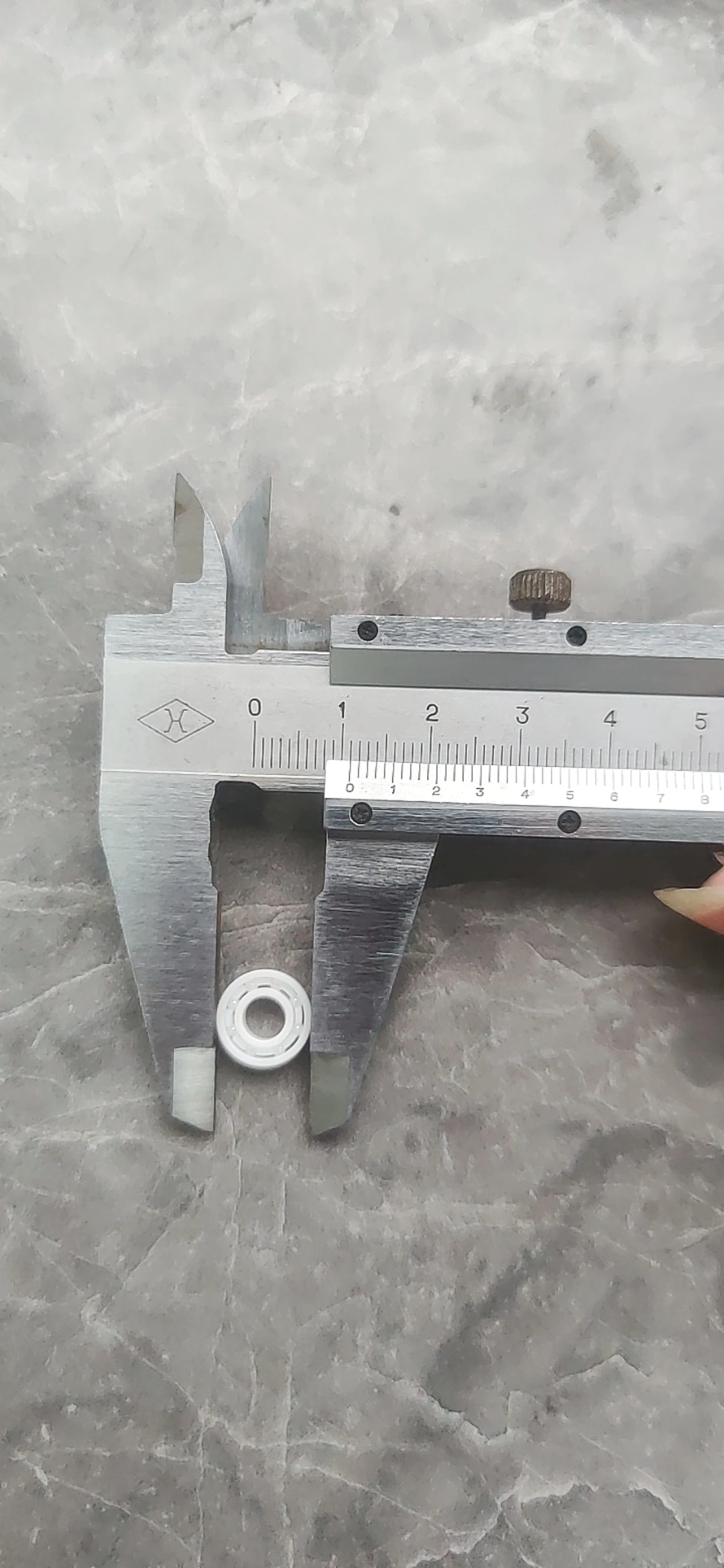

Ceramic Bearing Miniature Bearing MR115 5mm X 11mm X 4mm
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-92.OD Size: 3mm~200mm3. ID Size: 0.5mm~180mm4. Certification: ISO9001, SGS, CTI, ROHS
Product NameDEEP GROOVE BALL BEARINGMaterialCeramic Si3N4 , ZrO2SeriesMR11...
- Overview
- Related Products
Product Description
1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9
2.OD Size: 3mm~200mm
3. ID Size: 0.5mm~180mm
4. Certification: ISO9001, SGS, CTI, ROHS
Product Name |
DEEP GROOVE BALL BEARING |
Material |
Ceramic Si3N4 , ZrO2 |
Series |
MR115 5X11X4 |
Precision grade |
P0,P6,P5,P4,P2 or ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9 |
Reference Standard |
DIN620(Germany), ANSI(America),ISO,INA, NTN, NSK,etc. |
Delivery Date |
Normally ready goods and stock within 7 days |
Used |
Electric machine, conveyor, cement mixer etc |
Our Products

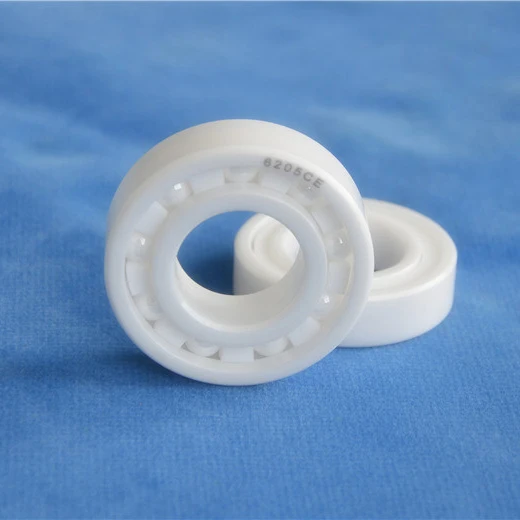

Full Ceramic Si3N4 Ball bearing
The ceramic ball bearings shown in the dimension table below have rings and balls made from silicon nitride (Si3N4). These silicon nitride bearings are available from stock in the Tarso company without a cage (full complement) or with cages made from PEEK. We can also offer our ceramic bearings with PTFE or 316 stainless steel cages.These are non magnetic, non-conductive and extremely corrosion resistant to most chemicals although not suitable for shock/impact loads due to the more brittle nature of the material. Silicon nitride full complement bearings can be used up to 800°C while bearings with a PEEK cage can cope with temperatures of up to 250°C. PTFE and 316 stainless steel cages are used for temperatures down to approximately -200°C. The standard radial play for our silicon nitride bearings is C3 but other options can be supplied on request.
Our silicon nitride ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged. Si3N4 ceramic bearings are generally used in specialist applications for their high temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes are available on request."
Our silicon nitride ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged. Si3N4 ceramic bearings are generally used in specialist applications for their high temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes are available on request."
Full Ceramic ZrO2 Ball bearing
The full ceramic ball bearings listed below are supplied with rings and balls made from zirconium dioxide (ZrO2). These zirconia bearings are available as full complement (no cage) or with cages made from PTFE, PEEK or 316 stainless steel.
These are non magnetic, non-conductive and highly corrosion resistant to most chemicals although ZrO2 bearings are not recommended for prolonged contact with steam. Full complement bearings or those with a 316 stainless cage can be used up to 400°C while bearings with a PEEK or PTFE cage can cope with temperatures of up to 250°C. For temperatures below -70°C, PTFE or 316 stainless steel cages are preferred. Standard radial clearance for full ceramic bearings is C0 but other clearances can be supplied to order.
Our zirconia ceramic bearings are available from stock in the China open or with PTFE/PEEK seals. Some sizes may also be available flanged.
ZrO2 ceramic bearings are generally used for their extreme temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes can be supplied on request.
Hybrid Ceramic Ball Bearing
The hybrid ceramic ball bearings shown in the dimension table below have stainless steel rings and ceramic balls. The rings are made from AISI440C, 304 or 316 stainless steel. The ceramic balls are made from ZrO2, Si3N4 or Sic.These hybrid ceramic bearings are available from stock in the Tarso company without a cage (full complement) or with cages made from PTFE. We can also offer our hybrid ceramic bearings with PEEK or 316 stainless steel cages.
The hybrid ceramic bearing balls has the advantage of low density,low friction, high strength, electricity & magnet resistance and lubricant free. 1.5 times up high speed compare with stainless steel bearing. Life time increase 2 or 3 times compare with stainless steel bearing. Applicable for temperature up to 220â.
Our hybrid ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged.
Products Shows

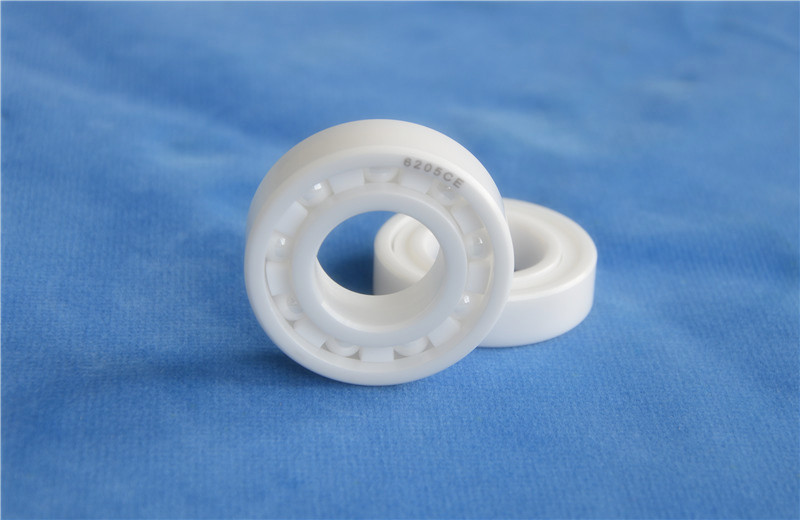

Full Ceramic ZrO2 bearing
Full ZrO2 with PTFE cage

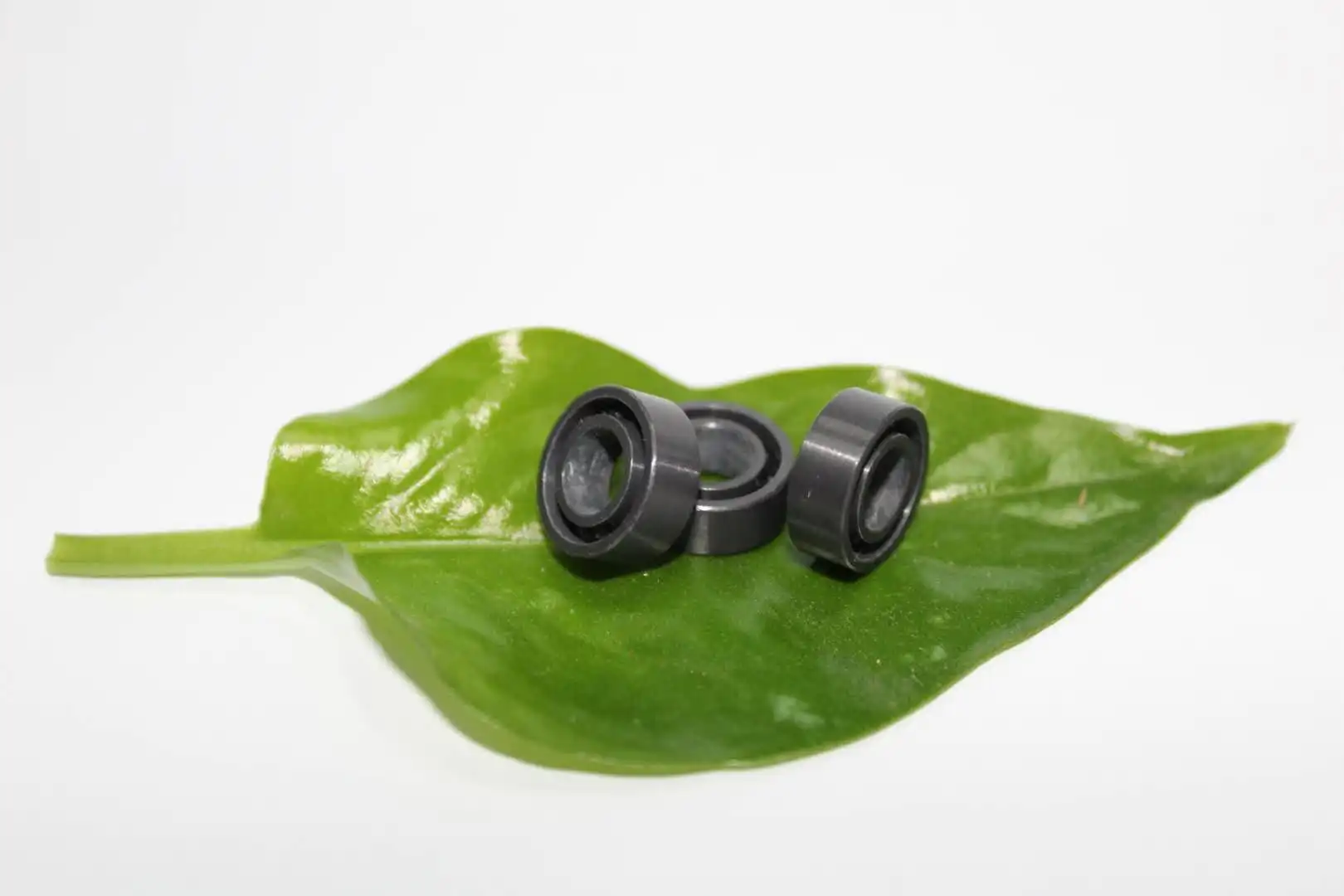

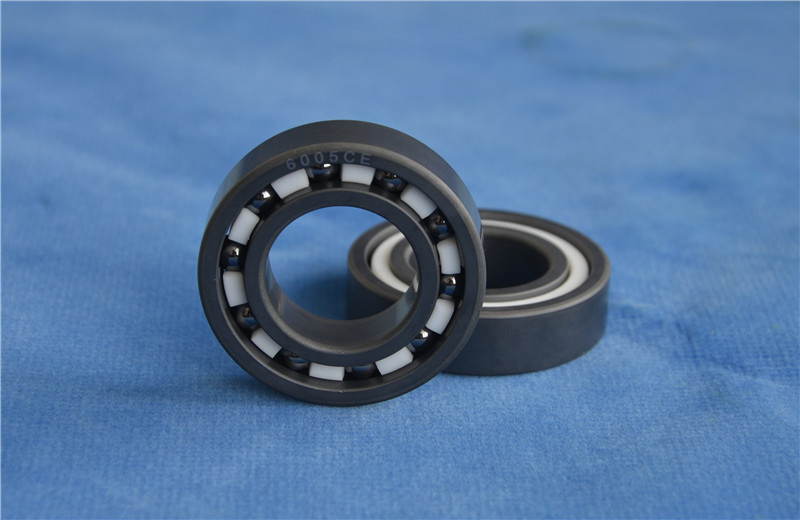

Full Ceramic Si3N4 Bearing
Full Si3N4 with Nylon cage

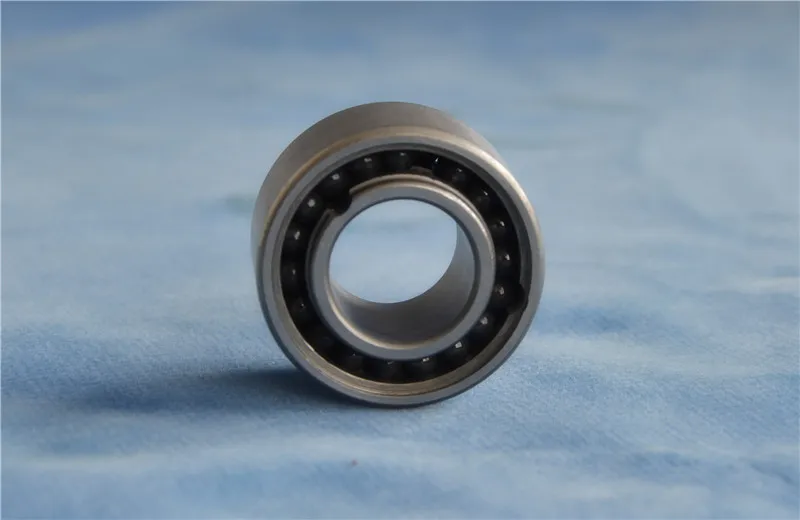

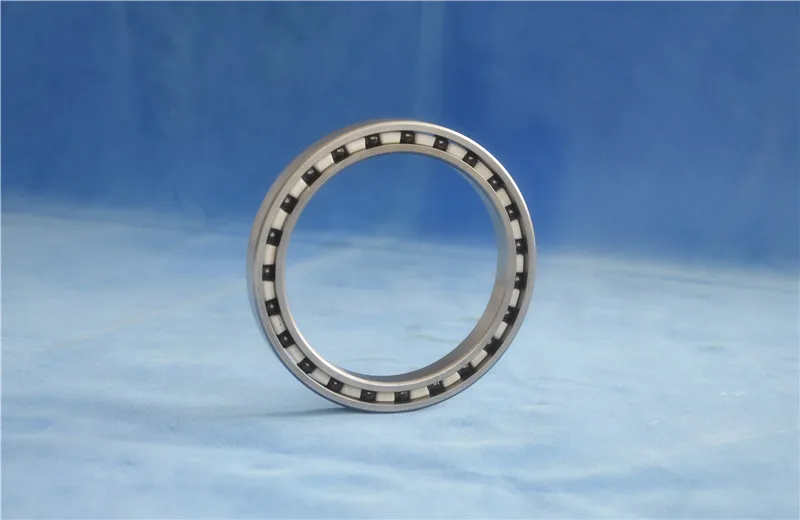

Full ball Hybrid Ceramic bearing
Staniless ring+ Si3N4 Ball
Our Company

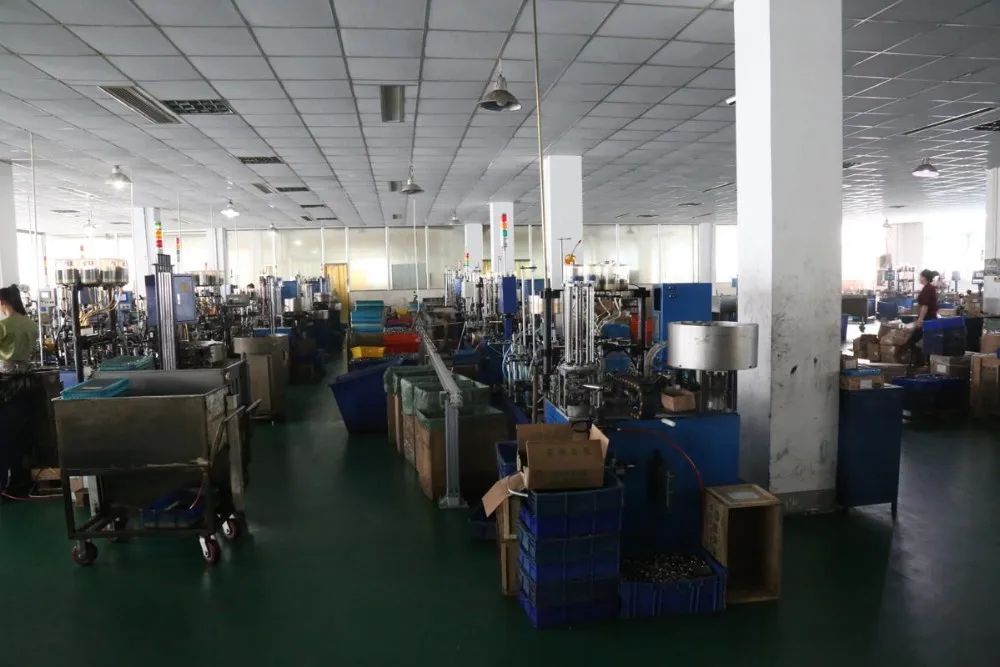

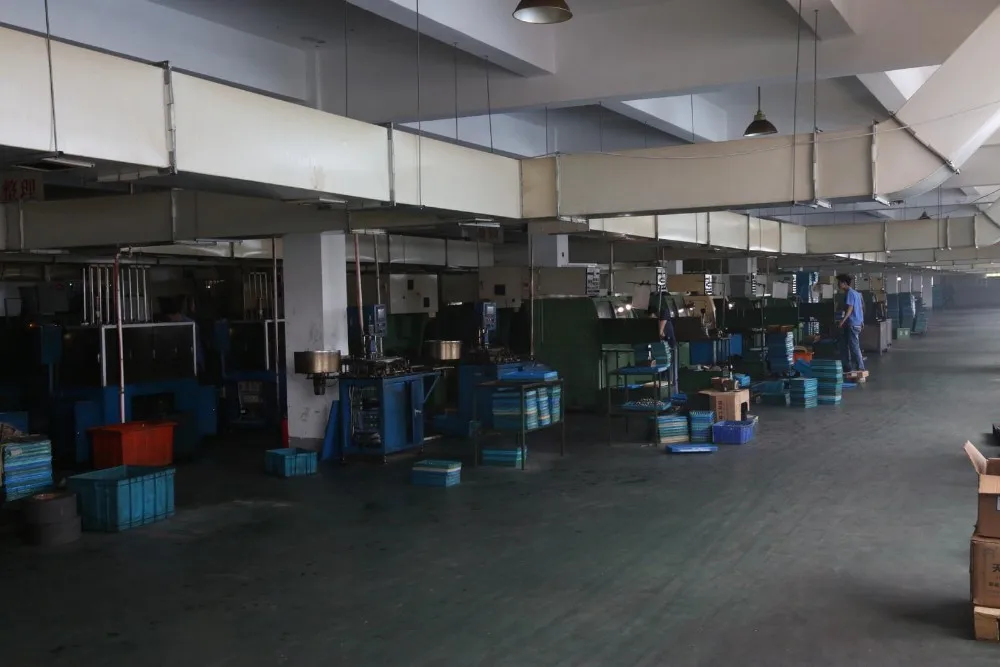

Factory
Our Factory

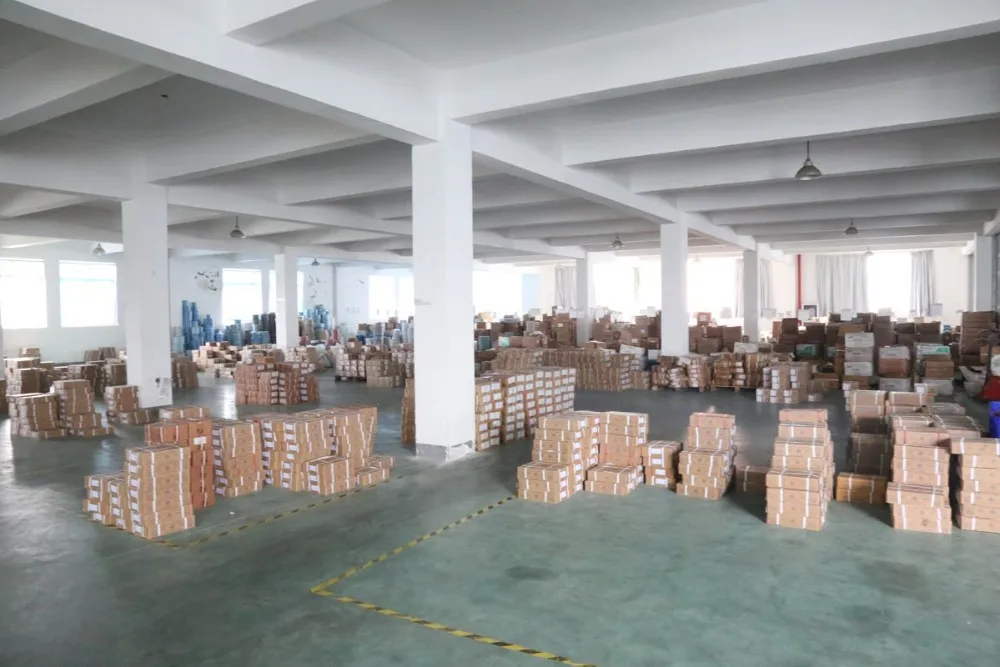

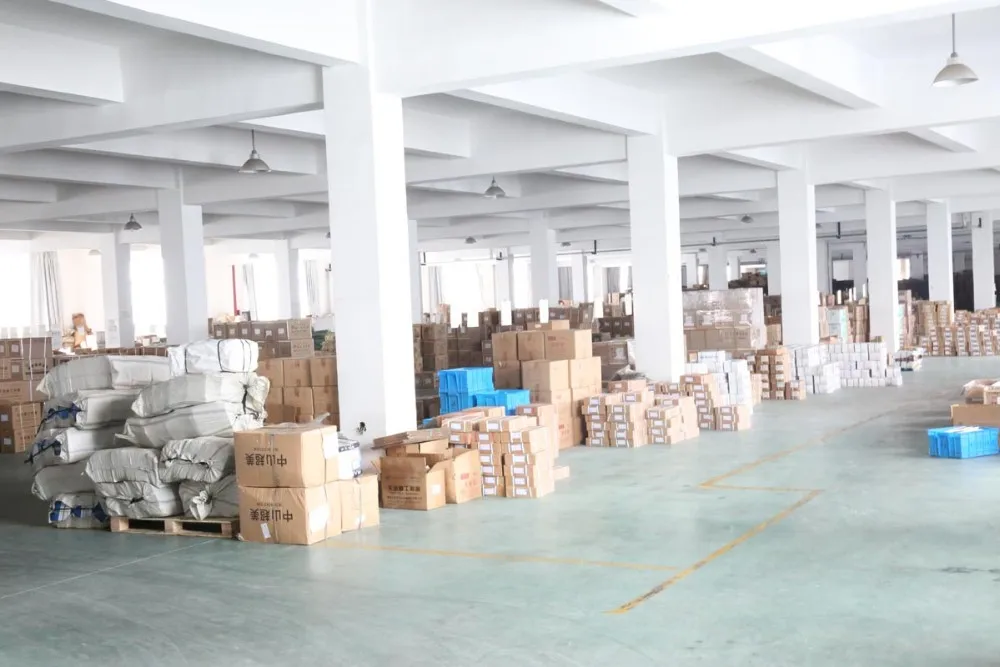

Warehouse
Our Warehouse
Testing Machine
Our Test
Workshop
Our worshop
Packing & Delivery
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
1. Carton packaging
2. Carton packaging
3. Carton packaging
4. Single package
5. Tube & Single package
6. Palltes package
Our Certifications
Exhibition Photo
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
